LMZ22008TZ/NOPB
Manufacturer:
Texas Instruments
Mfr.Part #:
LMZ22008TZ/NOPB
Datasheet:
Description:

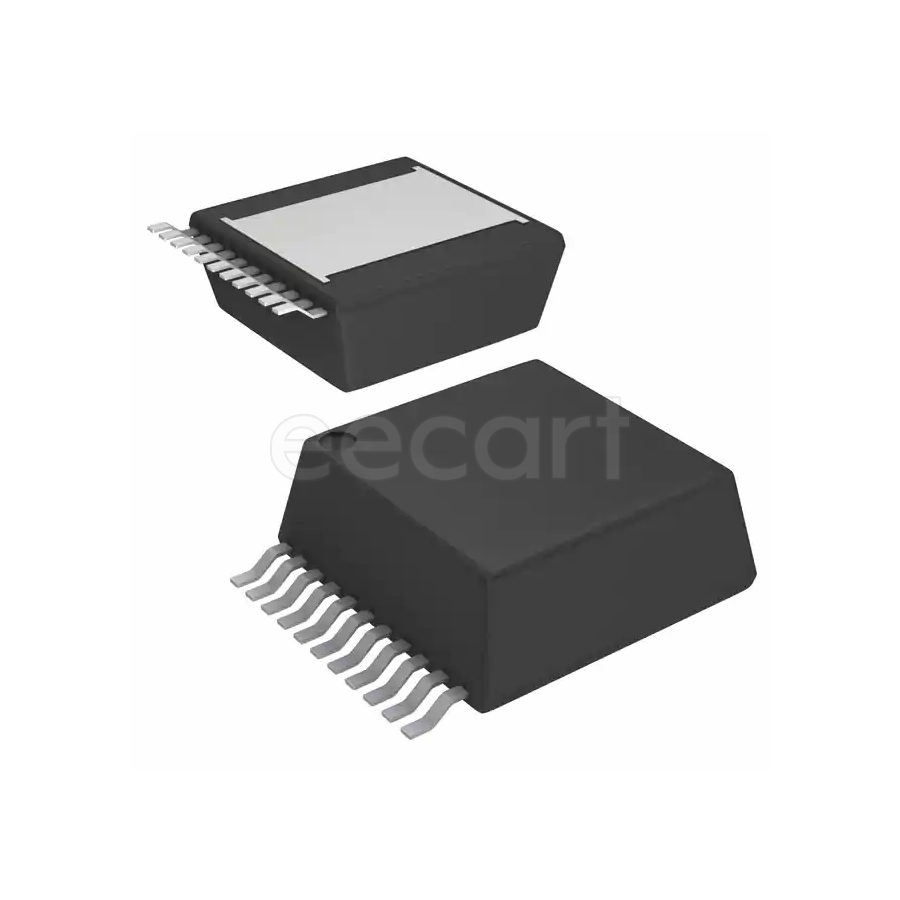

Voltage Regulators - Switching TO-PMOD-11 SMD/SMT Buck Adjustable 6 V
| Parameter | Value |
|---|---|
| Length | 15 mm |
| Width | 15 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 11 |
| Height | 6.13 mm |
| Packaging | Reel |
| Depth | 15 mm |
| Thickness | 5.9 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Features | UVLO |
| Min Input Voltage | 6 V |
| Output Current | 8 A |
| Output Voltage | 6 V |
| Output Type | Adjustable |
| Lifecycle Status | Production (Last Updated: 2 days ago) |
| Max Power Dissipation | 48 W |
| Max Output Current | 8 A |
| Quiescent Current | 3 mA |
| Switching Frequency | 600 kHz |
| Max Input Voltage | 20 V |
| Number of Outputs | 1 |
| Output Power | 40 W |
| Efficiency | 92 % |
| Voltage - Output 1 | 6 V |
| Min Output Voltage | 800 mV |
| Max Output Voltage | 6 V |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 days ago) |
| Topology | Buck |
Stock: 2
Distributors
pcbx
pcbxUnit Price$29.87324
Ext.Price$29.87324
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $29.87324 | $29.87324 |
| 10 | $29.13837 | $291.38370 |
| 25 | $28.42185 | $710.54625 |
